BIOLABO
1. Kenzamax
Spesifikasi • Flow cell: 18 µl • Minimum volume per test: 500 µl (flow cell: 350 µl) • Wavelength: 8 interferential filter positions: 340, 380, 405, 505, 546, 578 and 630 nm, + 1 free position • Measuring range: From -200 to +2500 mAbs • Photometric accuracy: CV < 1% to 2000 mAbs • Photometric linearity: ± 1% • Reproductibility: ± 1% from 0 to 2000 mAbs • Incubator: 9 positions, from 20 to 40°C • Printer: 24 columns build-in graphic printer • Power supply: 220 V, 50 Hz, or 110 V, 60 Hz • Net dimension: 35 cm X 34 cm X 24 cm • Gross dimension: 47,5 cm X 45 cm X 45 cm • Net weight: 7 kg • Gross weight: 10 kg
2. Kenza 240TX
Automatic biochemistry analyzer • Up to 240 tests per hour • First results after 2 minutes only
Reagents • Reagent tray: 30 to 60 independent positions • Cooled reagent tray, even when the instrument is off • Reagent level sensor
Samples • Sample tray: 50 positions (40 primary tubes 12x100 or cups + 10 standards and controls) • Sample tray for primary tubes 16x100 (Option) • Sample level sensor • Continuous probe washing
Software • Open System • Stat function • Continuous patient addition • Analyses: End Point, Kinetic, Fixed Time, Differential, Multistandard, Bichromatism, Immunoturbidimetry. • Connection to LIMS via RS232 • Remote control (optional)
Optical Group • Long life halogen lamp • 9 interferential filters : 340-380-405-450-505-546-570-620-700 • Simultaneous reading on 9 wavelengths through optic fibre • Optical path: 0,6cm • 50 long-life reading cuvettes • Automatic washing station for cuvettes • Low water consumption: 2 litres per hour during maximal use

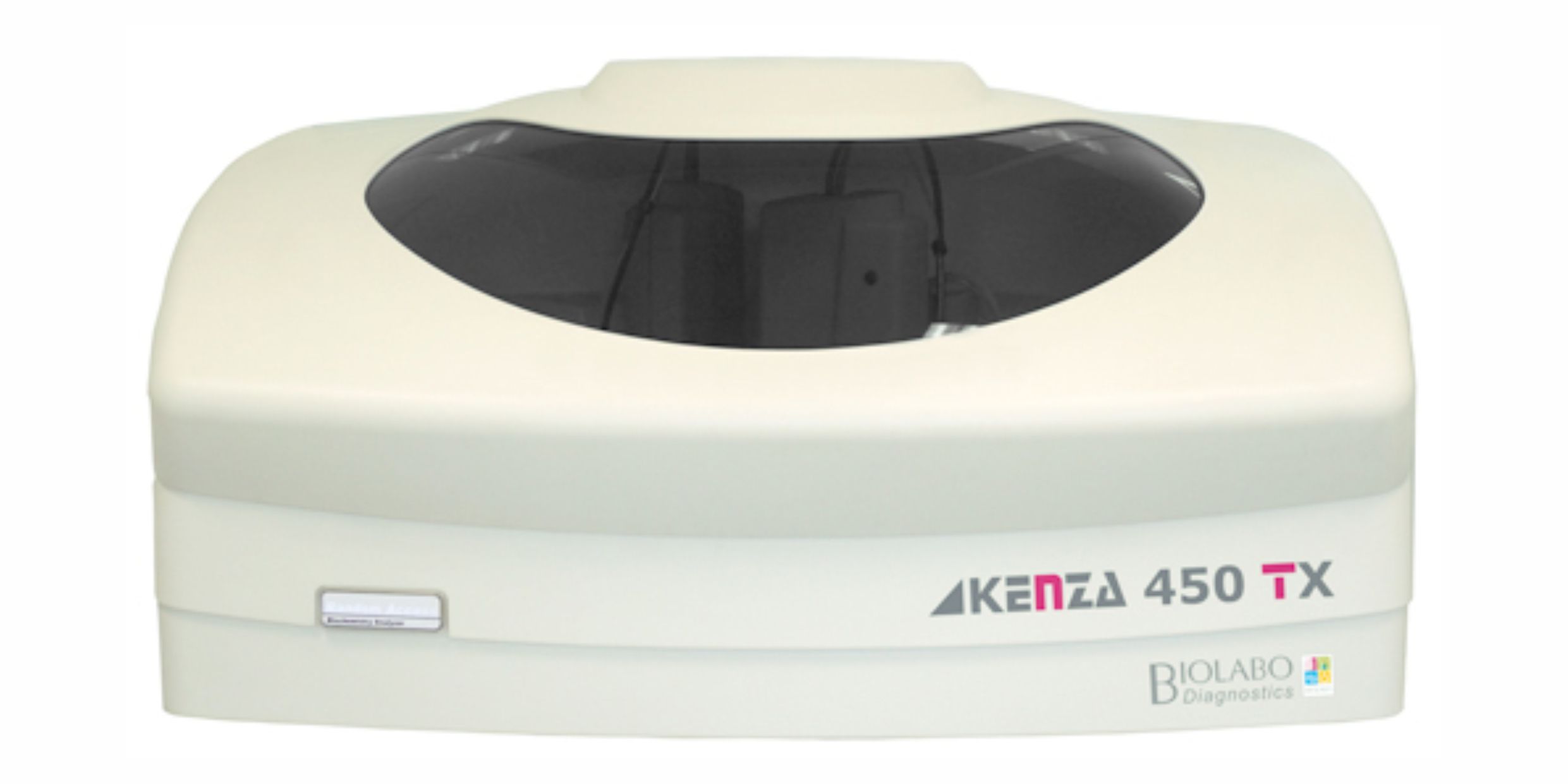

3. Kenza 450TX
Automatic biochemistry analyser • Up to 420 tests/hour • Optional ISE module : Na, K, Cl, Li (+480 tests/hour) • Random access • 120 independent reagent positions • 98 positions for samples, calibrators and controls • Automatic washing station for cuvettes • 2 automatic permanent washingstations for probes • Instant stat function • 2 arms, 3 syringes
Highest Flexibility • Time to first results : 2 min 23 s only! • Continuous loading of patients (samples, reagents…) • Immediate assay of STAT tests • Open Anytime! Stops sampling immediately if opened • Low water consumption (<3L /h in max. use) • No start and stop procedureAlways ready to work
Reagents • 2 reagent trays • 60 positions for R1 • 60 positions for R2/R3 • Small, medium, large vials or microvolumes • Permanent cooling of reagent tray • Reagent level sensor • Reagent probe collision detector • Permanent probe washing
Samples • Sample tray: 50 positions (40 primary tubes 12x100 or cups + 10 standards and controls) • Sample tray for primary tubes 16x100 (Option) • Sample level sensor • Continuous probe washing
Software • Open System • Stat function • Continuous patient addition • Analyses: End Point, Kinetic, Fixed Time, Differential, Multistandard, Bichromatism, Immunoturbidimetry. • Connection to LIMS via RS232 • Remote control (optional)
Optical Group • Long life halogen lamp • 9 interferential filters : 340-380-405-450-505-546-570-620-700 • Simultaneous reading on 9 wavelengths through optic fibre • Optical path: 0,6cm • 50 long-life reading cuvettes • Automatic washing station for cuvettes • Low water consumption: 2 litres per hour during maximal use
